● Advanced automatic conveying equipment for drippers, achieving stable and accurate conveying and supply of drippers, and perfect adhesion with the inner wall of drip irrigation;
● Punching device: Servo punching machine, using two punching machines. Ensure the accuracy and stability of drilling;
● The winding machine consists of a dual station reel, a large hip rotation device, a wire arrangement device, a rack, and other mechanisms. It can determine the spacing between the wires and the length of each reel based on the diameter of the dropper, and the reel can automatically adjust the winding speed and tension control with changes in the warp. Implement automatic winding and other processes for drip irrigation pipes.
● Core component equipment 1: high-speed screening and conveying device
Capable of identification and transportation Φ 12-16-20mm various forms of drippers, identification and conveying speed: 450-500 pieces/minute;Adopting a European cash rotary conveying mechanism, the conveying guide rail can automatically adjust its forward and backward movement position;
Equipped with a highly precise servo controlled droplet embedding system, the droplet conveying speed and spacing can be adjusted online through the PLC human-machine interface.
● Core component equipment 2: fully automatic punching device
Equipped with the world's most advanced servo drilling technology, the drilling speed reaches 450-500 times/minute, it can achieve a double hole drilling method for drip heads.
Controlled by a servo motor, it is easy to maintain and has a long service life. The number and position of holes can be combined according to different requirements;
Achieve precise drilling and remote service monitoring of drilling status.
● Core component equipment 3: dual station automatic winding machine
Automation of automatic routing, winding, changing, and rice counting of drip irrigation pipes
The winding speed and meters per roll are easily controlled through the PLC human-machine interface;
Realize equipment production speed of 80m/min.

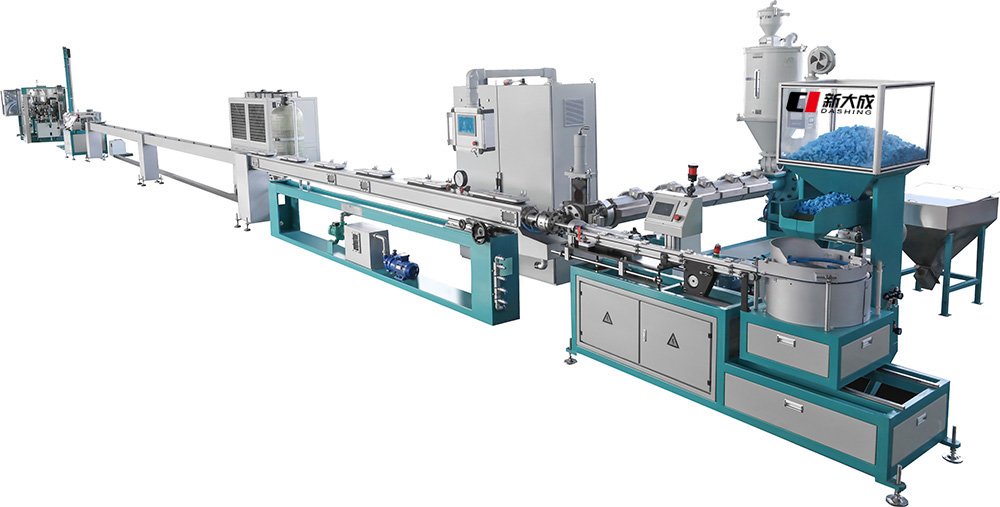

● The cylindrical drip irrigation pipe products produced by this drip irrigation pipe production equipment have the characteristics of high hardness and strong durability, and are suitable for drip irrigation of fruit trees and large crops.
