The Automatic Dripper Feeding & Screening System is an auxiliary unit for drip irrigation pipe and tape production lines. It automatically screens randomly supplied drippers, identifies their orientation and feeds correctly positioned drippers through the preset track.
A built-in dripper buffer storage and supply system helps maintain a continuous supply of drippers during production and provides additional feeding capacity when the screening unit requires adjustment.

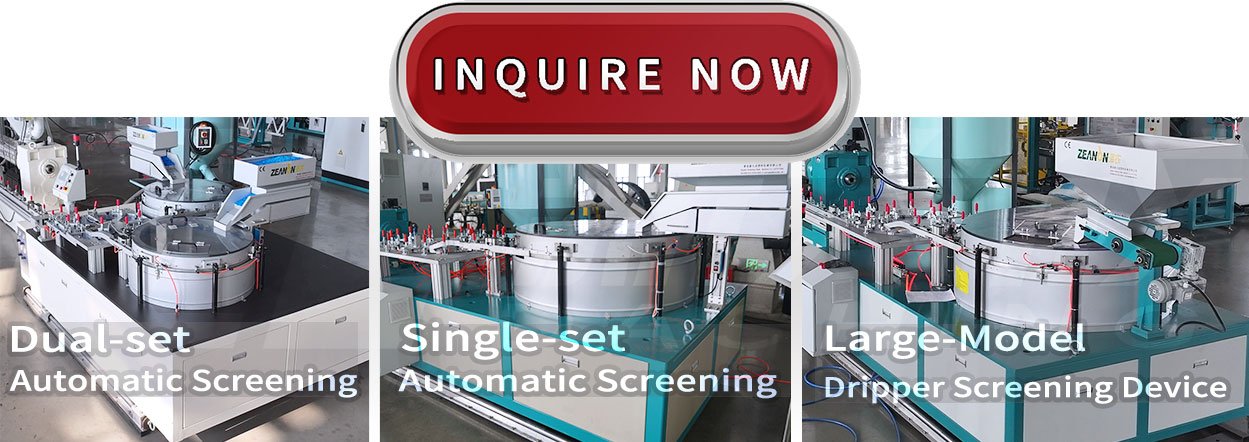

Available Dripper Screening Systems
| Configuration | Screening Capacity | Main Application |
|---|---|---|
Dual-set Automatic Screening & Identification Device | Up to 4,500 drippers/min | High-speed production lines |
| Single-set Automatic Screening & Identification Device | Up to 2,500 drippers/min | Standard automatic feeding |
| Large-Model Dripper Screening Device | Up to 2,500 drippers/min | Larger dripper applications |
All three configurations are equipped with a dripper storage device.
Dripper Orientation Control
The automatic screening system controls the orientation of randomly supplied drippers and guides them into the correct feeding track.

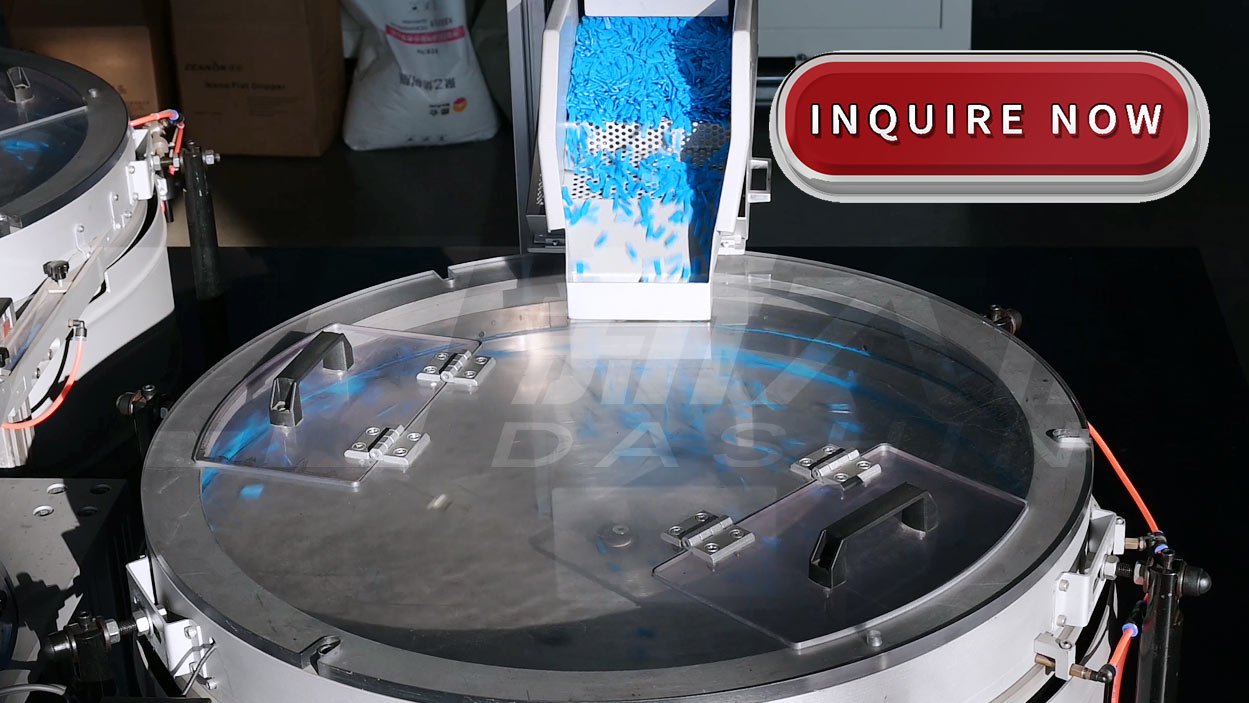

Inside the screening and identification chamber, a high-speed centrifugal rotating disc moves and separates the drippers. The system identifies correctly positioned drippers and allows them to pass rapidly into the designated track for continuous feeding.
This automatic process minimizes manual dripper sorting and helps match the feeding requirements of high-speed drip irrigation production.
Dripper Buffer Storage & Supply
The dripper buffer storage device stores screened drippers before they enter the downstream feeding process.
During adjustment of the screening and identification unit, the buffer supply mechanism can quickly replenish drippers along the preset track. This helps maintain a stable dripper supply and reduces the influence of short-term screening adjustments on continuous production.
Main Advantages
● Automatic dripper screening and orientation identification
● High-speed centrifugal screening mechanism
● Correctly oriented drippers automatically enter the feeding track
● Dual-set configuration: up to 4,500 drippers/min
● Single-set configuration: up to 2,500 drippers/min
● Large-model configuration: up to 2,500 drippers/min
● Dripper buffer storage for continuous supply
● Reduced manual sorting and feeding
● Designed for integration with automatic drip irrigation pipe and tape production lines
Suitable Applications
This automatic dripper feeding and screening system is suitable for drip irrigation production lines requiring continuous automatic dripper supply, particularly high-speed drip irrigation pipe and drip tape production lines.
The appropriate configuration can be selected based on the dripper model, size, production speed and required feeding capacity.
